7-segment Numeric LED Displays

SND-4010
SND-4017

7-segment Numeric LED Displays
4.0"(100.0mm), High Reliability

Features

1. High brightness with high contrast.
2. Uniform brightness and wide view angle.
3. Solid state reliability.
4. Cathode-common and anode common types available.
5. Standard with black face and milky white segment color.
6. Emitting color in ultra red and yellow-green.
7. Two confoguration available; five chips in series(economic) and ten chips in series-parallel(standard grade).

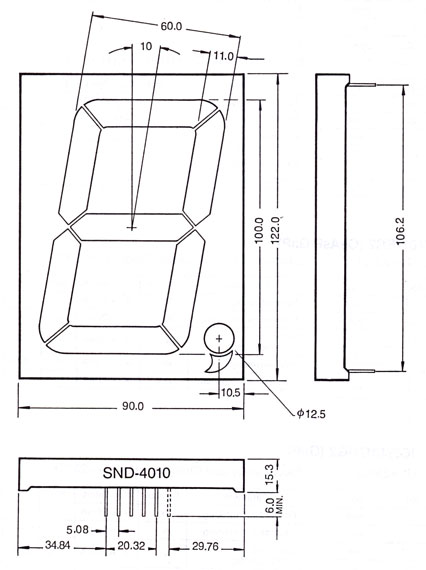

Dimensions

Pin Layout


(Top View)	SND-4010 Note : SND-4017 has reversed polarity for all diodes.


	SND-4010-2 Note : SND-4017-2 has reversed polarity for all diodes.

Absolute Maximun Ratings (Ta = 25°C)

Parameter	Suffix	UR	SR2	UG2
	Emitting Color	Red	Orange	Yellow-green
	Unit \ Chip	GaAlAs	GaAsP / GaP	GaP
Power Dissipation - Total	mW	1480	2880	2880
Power Dissipation - Segment	mW	200	400	400
Forward Current	mA	20	40	40
Peak Forward Current	mA	*60	*120	*120
Reverse Voltage	V	25	25	25
Operating Temperature	°C	-25 ~ 85	-25 ~ 85	-25 ~ 85
Storage Temperture	°C	-55 ~ 100	-55 ~ 100	-55 ~ 100
* 1 msec pulse width, 1/5 duty cycle

Electrical / Optical Characteristics (Ta = 25°C)

Parameter	Symbol	Unit	Condition UR	Condition SR2/UG2	UR			SR2			UG2
Parameter	Symbol	Unit	Condition UR	Condition SR2/UG2	min.	typ.	max.	min.	typ.	max.	min.	typ.	max.
Forward Voltage / seg.	VF	V	IF =15 mA	IF =30 mA	--	9.0	10.0	--	10.0	11.0	--	10.5	11.5
Reverse Current / seg.	IR	��A	VR = 25 V	VR = 25 V	--	--	10	--	--	20	--	--	20
Luminous Intensity / digit	IV	��cd	IF =15 mA	IF =30 mA	700	1500	--	400	1200	--	500	1300	--
Peak Wavelength	��P	nm	IF =15 mA	IF =30 mA	--	660	--	--	635	--	--	565	--
Spectral Line Halfwidth	�ĥ�	nm	IF =15 mA	IF =30 mA	--	20	--	--	35	--	--	30	--

Product Bulletin : ISPN.E001-143
