SND-6010
SND-6017

7-segment Numeric LED Displays
6.0"(152.4mm), High Reliability


Features

1. High brightness with high contrast.
2. Uniform brightness and wide view angle.
3. Solid state reliability.

4. Cathode-common and anode common types available.

5. Standard with black face and milky white segment color.

6. Emitting color in ultra red, amber and yellow-green.

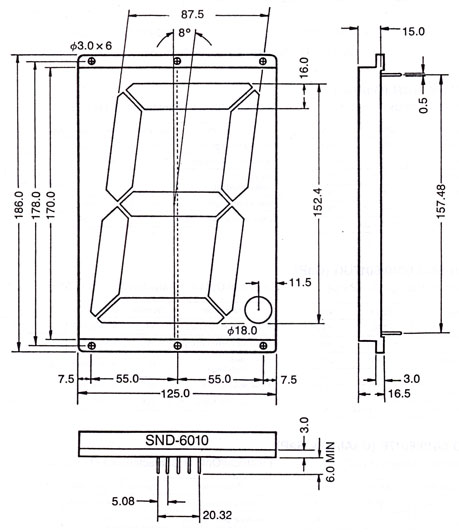

Dimensions

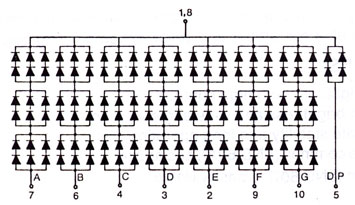

Pin Layout



(Top View)

SND-6010

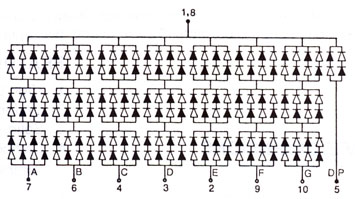

 Note : SND-6017 has reversed polarity for all diodes.





SND-4010 E
 Note : SND-4017 E has reversed polarity for all diodes.

Absolute Maximun Ratings (Ta = 25°C)

Parameter

Suffix

UR

UG

UR/UG

Emitting Color

Red

Yellow-green

Amber

Unit \ Chip

GaAlAs

GaP

GaAlAs - GaP

Power Dissipation - Total

mW

5200

5200

6880

Power Dissipation - Segment

mW

720

720

960

Forward Current

mA

60

60

80

Peak Forward Current

mA

*180

*180

*240

Reverse Voltage

V

30

30

30

Operating Temperature

°C

-25 ~ 85

-25 ~ 85

-25 ~ 85

Storage Temperture

°C

-55 ~ 100

-55 ~ 100

-55 ~ 100

* 1 msec pulse width, 1/5 duty cycle

Electrical / Optical Characteristics (Ta = 25°C)

Parameter

Symbol

Unit

Condition
UR/UG

Condition
UR-UG

UR

UG2

UG2

min.

typ.

max.

min.

typ.

max.

min.

typ.

max.

Forward Voltage / seg.

VF

V

IF =50 mA

IF =60 mA

--

10.8

12.0

--

12.6

13.8

--

12.0

13.0

Reverse Current / seg.

IR

レA

VR = 30 V

VR =30 V

--

--

30

--

--

30

--

--

40

Luminous Intensity / digit

IV

レcd

IF =50 mA

IF =60 mA

1300

2500

--

800

2000

--

1500

3000

--

Peak Wavelength

P

nm

IF =50 mA

IF =60 mA

--

660

--

--

565

--

--

660/565

--

Spectral Line Halfwidth

ツル

nm

IF =50 mA

IF =60 mA

--

20

--

--

30

--

--

20/30

--


Product Bulletin : ISPN.E001-145
