SNA-520

Alpha - Numeric LED Displays
0.8"(20.3mm), High Reliability

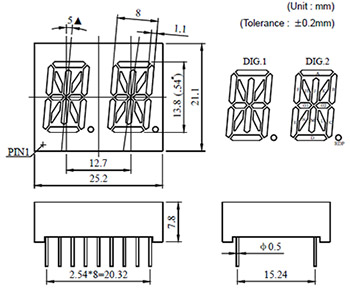

Dimensions

Features

Case Size : 25.2 X 21.1 X 7.8 mm (W x H x T)
Product Features :
. High brightness with high contrast
. Wide angle viewing
. Low power consumption
. Solid state stability and long operation life
. Mold type Pakage
. Common Cathode
Peak Wave Length : Red - 660nm
Case Color : Case surface is printed in black
Packing : Carton box

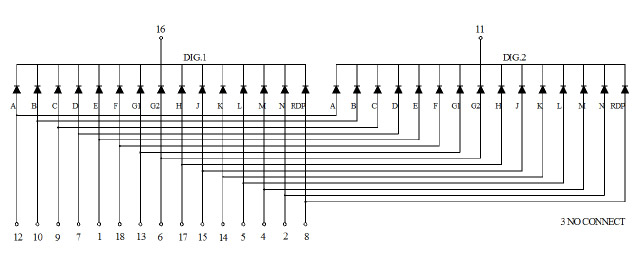

Pin Arrangement

SNA-520

Solder Bath Temp. 250กษ(MAX) / Dipping Time 4s(MAX)

SNA-840

Alpha - Numeric LED Displays
0.8"(20.3mm), High Reliability

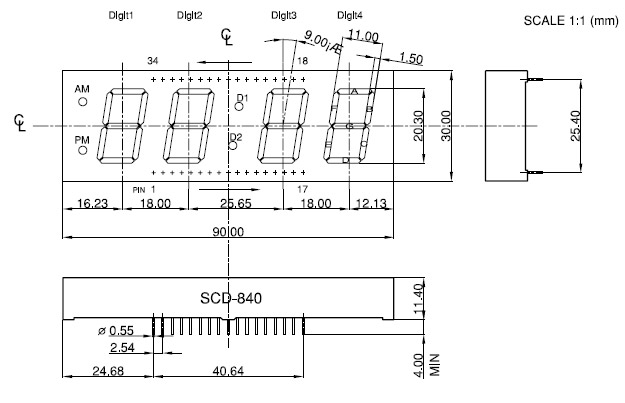

Dimensions

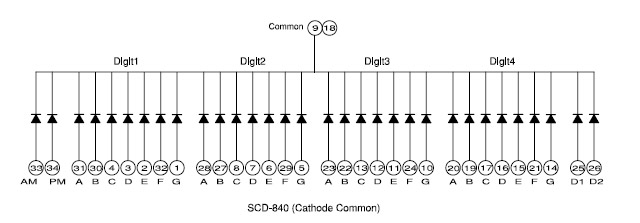

Pin Arrangement

SNA-840

Product Bulletin : ISPN.E001-147

End of page (06/20/96, Last Update on 05/20/06)
