SNA-8000
SNA-8007

Alpha - Numeric LED Displays
0.8"(20.3mm), High Reliability

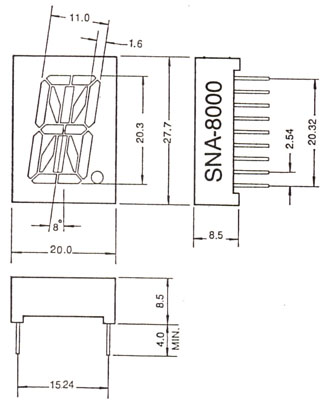

Dimensions

Features



1. High brightness with high contrast.
2. Uniform brightness and wide view angle.

3. Low power consumption.

4. Solid state reliability.

5. Cathode-common and anode common types available.

6. Emitting color available in red, orange and yellow-green.

7. Standard with black face and milky white segment color.

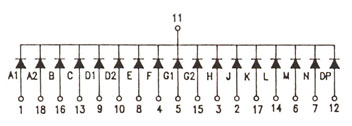

Pin Layout


(Top View)



SNA-8000

SNA-8007

Absolute Maximun Ratings (Ta = 25°C)

Parameter

Suffix

UR

SR

UG

Emitting Color

Red

Orange

Yellow-green

Unit \ Chip

GaP

GaAsP / GaP

GaP

Power Dissipation - Total

mW

680

680

680

Power Dissipation - Segment

mW

40

40

40

Forward Current

mA

20

20

20

Peak Forward Current

mA

*60

*60

*60

Reverse Voltage

V

4

4

4

Operating Temperature

°C

-25 ~ 85

-25 ~ 85

-25 ~ 85

Storage Temperture

°C

-55 ~ 100

-55 ~ 100

-55 ~ 100

* 1 msec pulse width, 1/5 duty cycle

Electrical / Optical Characteristics (Ta = 25°C)

Parameter

Symbol

Condition

Unit

UR

SR

UG

min.

typ.

max.

min.

typ.

max.

min.

typ.

max.

Forward Voltage / seg.

VF

IF =10 mA

V

--

1.9

2.1

--

2.0

2.2

--

2.1

2.3

Reverse Current / seg.

IR

VR = 4 V

レA

--

--

10

--

--

10

--

--

10

Luminous Intensity / digit

IV

IF =10 mA

レcd

1300

2000

--

500

1000

--

600

1500

--

Peak Wavelength

P

IF =10 mA

nm

--

660

--

--

635

--

--

565

--

Spectral Line Halfwidth

ツル

IF =10 mA

nm

--

20

--

--

35

--

--

30

--


Product Bulletin : ISPN.E001-147

End of page (06/20/96, Last Update on 05/20/06)
