SNA-12000
SNA-12007

Alpha - Numeric LED Displays
1.2"(30.5mm), High Reliability

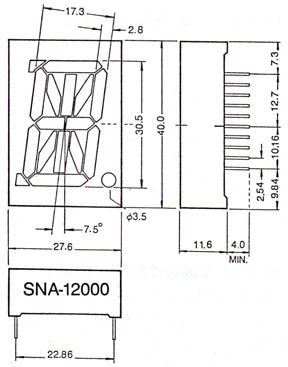

Dimensions

Features



1. High brightness with high contrast.
2. Uniform brightness and wide view angle.
3. Low power consumption.
4. Solid state reliability.
5. Cathode-common and anode common types available.
6. Emitting color available in red, orange and yellow-green.
7. Standard with black face and milky white segment color.

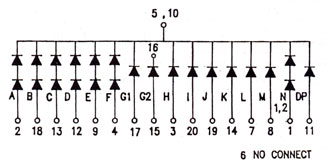

Pin Layout


(Top View)



SNA-12000

SNA-12007

Absolute Maximun Ratings (Ta = 25°C)

Parameter

Suffix

UR

SR

UG

Emitting Color

Red

Orange

Yellow-green

Unit \ Chip

GaP

GaAsP / GaP

GaP
Power Dissipation - Total

mW

920

920

920
Power Dissipation - Segment

mW

40 / 80

40 / 80

40 / 80
Forward Current

mA

10

10

10
Peak Forward Current

mA

*60

*60

*60
Reverse Voltage

V

4 / 10

4 / 10

4 / 10
Operating Temperature

°C

-25 ~ 85

-25 ~ 85

-25 ~ 85
Storage Temperture

°C

-55 ~ 100

-55 ~ 100

-55 ~ 100

* 1 msec pulse width, 1/5 duty cycle

Electrical / Optical Characteristics (Ta = 25°C)

Parameter

Symbol

Condition

Unit

UR

SR

UG

min.

typ.

max.

min.

typ.

max.

min.

typ.

max.
Forward Voltage / seg.

1-chip
2-chip

VF

IF =10 mA

V

--

1.9
3.8

2.1
4.2

--

2.0
4.0

2.2
4.4

--

2.1
4.2

2.2
4.4
Reverse Current / seg.

1-chip
2-chip

IR

VR = 4 V
 VR = 10 V

レA

--

--

10

--

--

10

--

--

10
Luminous Intensity / digit

IV

IF =10 mA

レcd

1000

2000

--

800

1500

--

700

1500

--
Peak Wavelength

ルP

IF =10 mA

nm

--

660

--

--

635

--

--

565

--
Spectral Line Halfwidth

ツル

IF =10 mA

nm

--

20

--

--

35

--

--

30

--
