SBD-646

Bar LED Displays
6.4 * 4.0 mm, 6 Bar, High Brightness

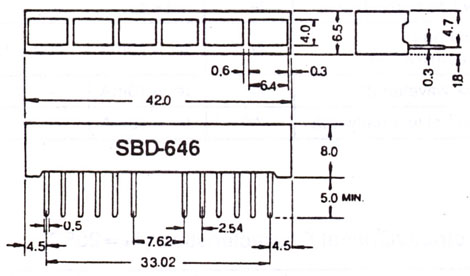

Dimensions

Features

1. High brightness with high contrast.
2. Low power consumption
3.
Solid state reliability.
4. Matched to SBD-446 for 10 bars.
5. Emitting color available in red, orange and yellow-green.
6. Black or gray face and milky white segment.

Pin Layout


 (Top View)

Absolute Maximun Ratings (Ta = 25°C)

Parameter

Suffix

R

G

SR

UG

Y

Emitting Color

Red

Green

Orange

Yellow-green

Yellow

Unit \ Chip

GaP

GaP

GaAsP / GaP

GaP

GaAsP / GaP

Power Dissipation - Total

mW

240

240

240

240

240

Power Dissipation - Segment

mW

40

40

40

40

40

Forward Current

mA

20

20

20

20

20

Peak Forward Current

mA

*60

*60

*60

*60

*60

Reverse Voltage

V

4

4

4

4

4

Operating Temperature

°C

-25 ~ 85

-25 ~ 85

-25 ~ 85

-25 ~ 85

-25 ~ 85

Storage Temperture

°C

-55 ~ 100

-55 ~ 100

-55 ~ 100

-55 ~ 100

-55 ~ 100

* 1 msec pulse width, 1/5 duty cycle

Electrical / Optical Characteristics (Ta = 25°C)

Parameter

Symbol

Condition

Unit

R

G

SR

UG

Y

min.

typ.

max.

min.

typ.

max.

min.

typ.

max.

min.

typ.

max.

min.

typ.

max.

Forward Voltage / seg.

VF

IF =10 mA

V

--

2.1

2.3

--

2.1

2.3

--

2.0

2.2

--

2.1

2.3

--

2.0

2.2

Reverse Current / seg.

IR

VR = 4 V

レA

--

--

10

--

--

10

--

--

10

--

--

10

--

--

10

Luminous Intensity / digit

IV

IF =10 mA

レcd

300

800

--

350

900

--

700

1500

--

600

1200

--

600

1000

--

Peak Wavelength

P

IF =10 mA

nm

--

700

--

--

555

--

--

635

--

--

565

--

--

585

--

Spectral Line Halfwidth

ツル

IF =10 mA

nm

--

100

--

--

30

--

--

35

--

--

30

--

--

30

--


Product Bulletin : ISPN.E001-167
