SBD-120

Flat LED Displays
7.3 * 13.8 mm, High Brightness

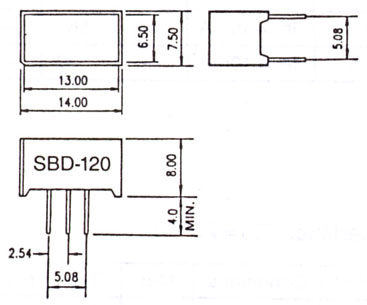

Dimensions

Features

1. High brightness with high contrast.
2. Low power consumption
3. Wide view angle.
4.
Solid state reliability.
5. Emitting color available in red, orange and yellow-green.

Pin Layout


(Top View)

Absolute Maximun Ratings (Ta = 25°C)

Parameter

Suffix

SR

UG

UR

Emitting Color

Orange

Yellow-green

Red

Unit \ Chip

GaAsP / GaP

GaP

GaAlAs

Power Dissipation - Total

mW

80

80

80

Power Dissipation - Segment

mW

40

40

40

Forward Current

mA

20

20

20

Peak Forward Current

mA

*60

*60

*60

Reverse Voltage

V

4

4

4

Operating Temperature

°C

-25 ~ 85

-25 ~ 85

-25 ~ 85

Storage Temperture

°C

-55 ~ 100

-55 ~ 100

-55 ~ 100

* 1 msec pulse width, 1/5 duty cycle

Electrical / Optical Characteristics (Ta = 25°C)

Parameter

Symbol

Condition

Unit

SR

UG

UR

min.

typ.

max.

min.

typ.

max.

min.

typ.

max.

Forward Voltage / seg.

VF

IF =10 mA

V

--

2.0

2.2

--

2.1

2.3

--

1.9

2.1

Reverse Current / seg.

IR

VR = 4 V

レA

--

--

10

--

--

10

--

--

10

Luminous Intensity / digit

IV

IF =10 mA

レcd

500

1000

--

600

1200

--

1300

2500

--

Peak Wavelength

P

IF =10 mA

nm

--

635

--

--

565

--

--

660

--

Spectral Line Halfwidth

ツル

IF =10 mA

nm

--

35

--

--

30

--

--

20

--
