SDM-22169


Dot Matrix LED Displays
16 * 16, Ø2.2 mm, 1.88", Dual Color, High Reliability


Features

1. High brightness with high contrast.
2. Low power consumption.
3. Wide view angle.
4. Solid state reliability.
5. Emitting color in red or green in separate, and amber together.
6. Black face and milky white segment color.

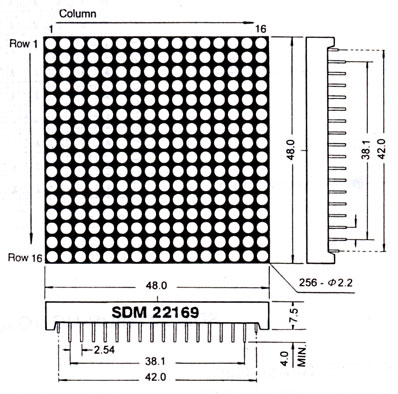

Dimensions

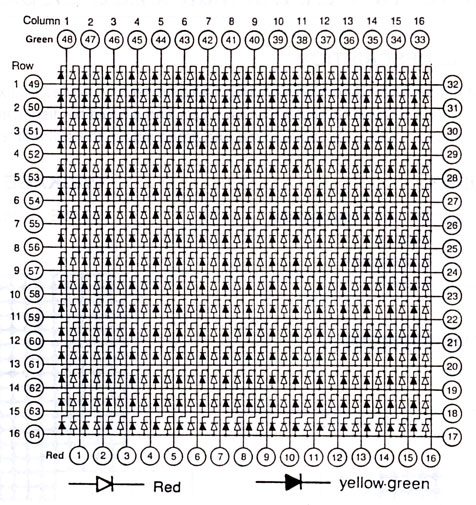

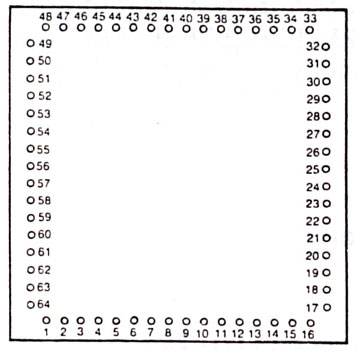

Pin Layout


(Top View)

Absolute Maximun Ratings (Ta = 25°C)

Parameter

Suffix

UR-side

UG-side

Emitting Color

Orange

Yellow-green

Unit \ Chip

GaAsP / GaP

GaP

Power Dissipation - Total

mW

5000

5000

Power Dissipation - Segment

mW

30

30

Forward Current

mA

15

15

Peak Forward Current

mA

*60

*60

Reverse Voltage

V

10

10

Operating Temperature

°C

-25 ~ 85

-25 ~ 85

Storage Temperture

°C

-55 ~ 100

-55 ~ 100

* 1 msec pulse width, 1/5 duty cycle

Electrical / Optical Characteristics (Ta = 25°C)

Parameter

Symbol

Condition

Unit

UR-side

UG-side

min.

typ.

max.

min.

typ.

max.

Forward Voltage / seg.

VF

IF =10 mA

V

--

1.9

2.0

--

2.1

2.3

Reverse Current / seg.

IR

VR = 4 V

レA

--

--

10

--

--

10

Luminous Intensity / digit

IV

IF =10 mA

レcd

900

1500

--

600

1200

--

Peak Wavelength

P

IF =10 mA

nm

--

660

--

--

565

--

Spectral Line Halfwidth

ツル

IF =10 mA

nm

--

20

--

--

30

--
