Dot Matrix Display Modules
Single Color

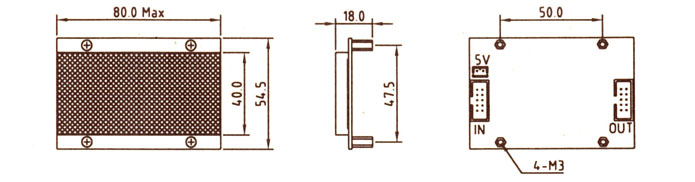

SMM 23216A

Category / Parameter

Unit

Data / Description

Dot Size, Ø

 mm

2
Number of Dots ea 16 * 32
Emitting Area mm 40 * 80
Current, Max. A 1.0
Emitting Color (n/a) red,  green or amber
(Dimension)

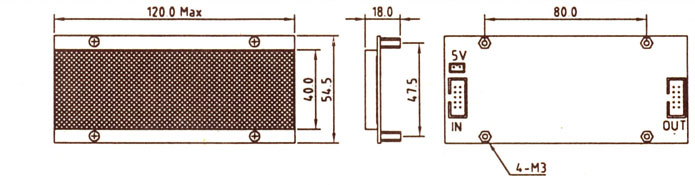

SMM 24816A

Category / Parameter

Unit

Data / Description

Dot Size, Ø

 mm

2
Number of Dots ea 16 * 48
Emitting Area mm 40 * 120
Current, Max. ampere 1.3
Emitting Color (n/a) red,  green or amber
(Dimension)

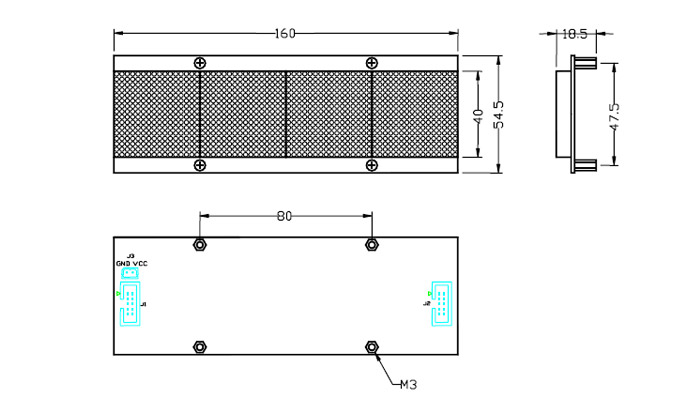

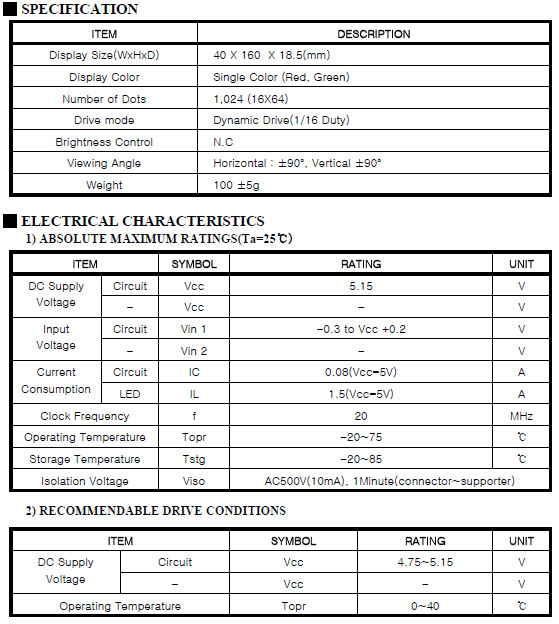

SMM 26416A
(Dimension)
SMM 28016A

Category / Parameter

Unit

Data / Description

Dot Size, Ø

 mm

2
Number of Dots ea 16 * 80
Emitting Area mm 40 * 200
Current, Max. A 1.8
Emitting Color (n/a) red,  green or amber
(Dimension)

Product Bulletin : ISPN.E001-301
