Dot Matrix Display Modules
Multi Color

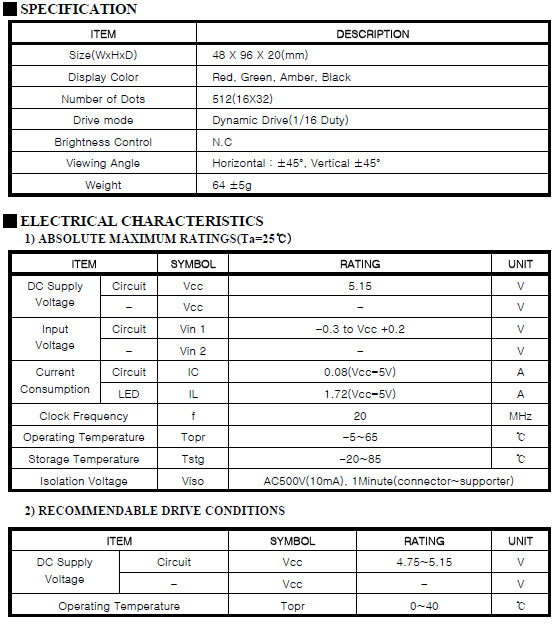

SMM 223216
(Dimension)

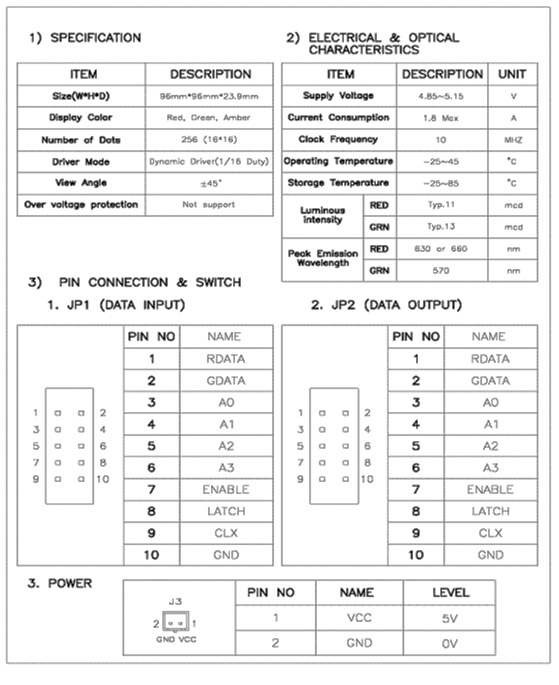

SMM 31616
(Dimension)

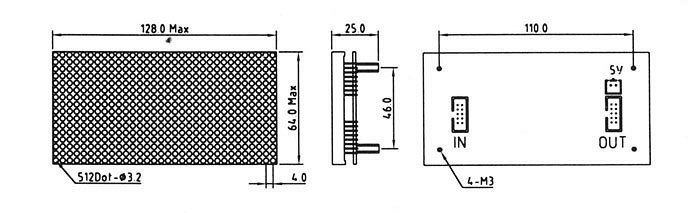

SMM 33216A

Category / Parameter

Unit

Data / Description

Dot Size, Ø

 mm

3.0
Number of Dots ea 16 * 32
Emitting Area mm 64 * 128
Current, Max. ampere 2.6
Emitting Color (n/a)

red,  green and amber
(Dimension)
SMM 51616A
(Dimension)

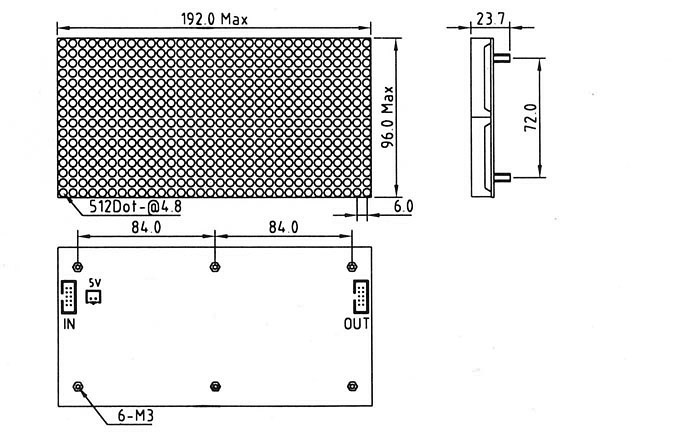

SMM 53216A

Category / Parameter

Unit

Data / Description

Dot Size, Ø

 mm

4.8
Number of Dots ea 16 * 32
Emitting Area mm 96 * 192
Current, Max. A 2.6
Emitting Color (n/a)

red,  green and amber
(Dimension)

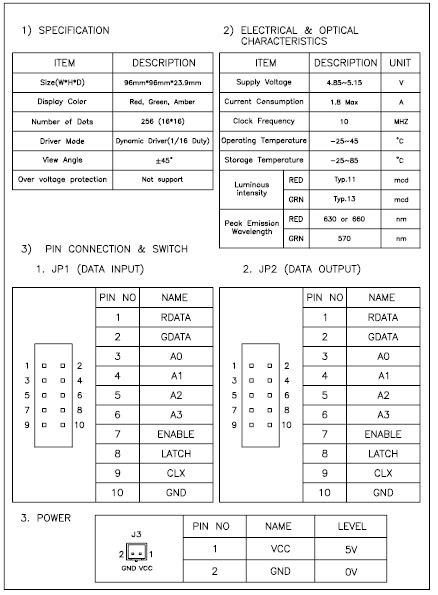

SMM 61616A

Category / Parameter

Unit

Data / Description

Dot Size, Ø

 mm

6.0
Number of Dots ea 16 * 16
Emitting Area mm 128 * 128
Current, Max. A 2.3
Emitting Color (n/a)

red,  green and amber
(Dimension)

Product Bulletin : ISPN.E001-302
